Characteristic and use:
330T Laminator is adopted both foreign and domestic advanced technology. and develope
by our company, this machine make the best use of power, and preheat very quickly, can laminate
every kind card and photo and so on,and have a good laminating effect,and we create a system
that can prove the roller broken owing of the high temperature.
This machine can laminate ID card, driving card, xvork card, photo,name card. drawing paper
and all kinds of card,this machine operation is very simple,and the laminated items can be proof
of water and fade. can save for very long term.
When cold laminating,please set the temperature at room temperature. open the above cover.
and then to operate the machine.
Technology parameter:
Model: 330T
Power: 600W
Voltage: 220V/50Hz
Speed : 400-1300mm/min(adjustable)
Working temperature range: 25 ℃ -199 ℃ (adjustable)
Thickness range: < 1.2mm
Dimension: 505mmX250mmX11Omm
Laminating width(Max.): 330mm
Weight: 13kg
Operation process:
1, Connect the power(220V,50Hz), turn on the power swith(at the back of machine), the LED will
display the temperature,the machine also start heating,the rollers become hot,
2, The machine default setting temperature is 100 ℃, you can also adjust the temperature according
to your pouch film thickness, The pre-heating time is 3 minutes,when the temperature reach the
setting temperature,the 'READY' light will be on, you can laminating the items now,
3, Put the items which you want to laminate in the pouch film,first put the pouch film which side
is closed into the machine enter, and the items will pass the rollers, and several seconds later,
one items is laminated ok,
4, If find the item place not in right place,you can press the button" REV " ,and the machine will
display "REV ",the roller will run back,the item will come back,and then reput the item again,
Laminating temperature:
This machine is can be temperature adjusting, at room temperature 25℃, the recommend temperature
is as following
Notice:
1, The laminator should be placed at the dry and clear place,should be far away the easy flammable
and explosive product,
2, Do not label on the machine, do not put things on the machine when working,
3, For your safe,please connect the ground line,
4, When stop the machine,please adjust the temperature be lower than 100 ‚Ñé, turn off the machine
2 minutes later, this can avoide that the rollers stop suddenly at very hot temperature and result
in roller some place to be too hot,
5, Strictly prohibit to repair the machine with electricity,
6, When clear the rollers, you can use some soft fabric dip alcohol to clear the rollers, could not
use the gasoline and some thinner to clear the rollers,and could not use the metal tool to scratch
to knock the rollers,
But also should to adjust the temperature according to your pouch film size, thickness,and the
material of the pouch film,if the temperature is too low,the laminated item is not very clear,
you should improve the temperature or reduce the speed, if the temperature is too high, the pouch
film will ruck, you should reduce some temperature or increase the speed。

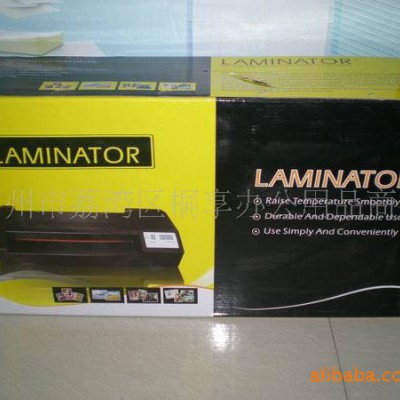

Physical picture:
银灰色
黑色
